| 路由器（Router）是連接兩個或多個網絡的硬件設備，在網絡間起網關的作用，是讀取每一個數據包中的地址然后決定如何傳送的專用智能性的網絡設備，路由器最主要的功能為實現信息的轉送。 今天1個AP出現注冊不上控制器的情況，隨手記一下。
日志提示 DTLS_CLIENT_ERROR: ../capwap/base_capwap/dtls/base_capwap_dtls_connection_db.c:224 Connection 0x306C3AC is already there for this server port 5246, Deleting it. Number of connections: 1
檢查AP的配置，證書時間等均是正確的，重啟AP問題依舊。
完整日志如下：
*Jun 1 06:53:52.000: %CAPWAP-5-DTLSREQSEND: DTLS connection request sent peer_ip: 172.17.10.10 peer_port: 5246
*Jun 1 06:53:52.511: %CAPWAP-5-DTLSREQSUCC: DTLS connection created sucessfully peer_ip: 172.17.10.10 peer_port: 5246
*Jun 1 06:53:52.511: %CAPWAP-5-SENDJOIN: sending Join Request to 172.17.10.10
*Jun 1 06:53:52.523: %DTLS-5-SEND_ALERT: Send FATAL : Close notify Alert to 172.17.10.10:5246
*Jun 1 06:54:02.000: %CAPWAP-5-DTLSREQSEND: DTLS connection request sent peer_ip: 172.17.10.10 peer_port: 5246
*Jun 1 06:54:01.000: %CAPWAP-5-DTLSREQSEND: DTLS connection request sent peer_ip: 172.17.10.10 peer_port: 5246
*Jun 1 06:54:01.000: DTLS_CLIENT_ERROR: ../capwap/base_capwap/dtls/base_capwap_dtls_connection_db.c:224 Connection 0x306C3AC is already there for this server port 5246, Deleting it. Number of connections: 1
*Jun 1 06:54:01.000: %DTLS-5-SEND_ALERT: Send FATAL : Close notify Alert to 172.17.10.10:5246
*Jun 1 06:54:01.011: DTLS_CLIENT_ERROR: ../capwap/base_capwap/dtls/base_capwap_dtls_handshake.c:929 Unexpected message received while expecting HelloVerifyRequest
*Jun 1 06:54:01.011: %DTLS-5-SEND_ALERT: Send FATAL : Unexpected message Alert to 172.17.10.105246
*Jun 1 06:54:01.011: %DTLS-5-SEND_ALERT: Send FATAL : Close notify Alert to 172.17.10.10:5246
原因分析
由于該AP是Root AP，想到可能是mac地址沒有自動加入AP Policies，因此去搜索了一下，果然沒有添加這個mac，原因找到。
解決方法
添加AP的mac到AP Policies即可。
首先show version獲取AP的mac地址
32K bytes of flash-simulated non-volatile configuration memory.
Base ethernet MAC Address: D4:D7:48:6D:F0:E0
Part Number : 73-13538-01
PCA Assembly Number : 800-31224-01
PCA Revision Number : 03
PCB Serial Number : FOC15491L54
Top Assembly Part Number : 800-34851-02
Top Assembly Serial Number : FTX1542P367
Top Revision Number : A0
Product/Model Number : AIR-CAP1552E-A-K9

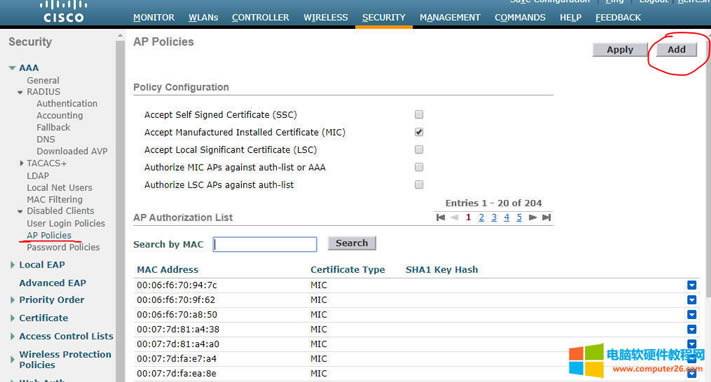

然后按照下圖添加mac地址，就可以了。
添加之后檢查該AP是否注冊上控制器。
在AP上看到日志如下，顯然已經注冊成功了。
*Jun 1 07:02:23.000: %CAPWAP-5-DTLSREQSEND: DTLS connection request sent peer_ip: 172.17.10.10 peer_port: 5246
*Jun 1 07:02:23.495: %CAPWAP-5-DTLSREQSUCC: DTLS connection created sucessfully peer_ip: 172.17.10.10 peer_port: 5246
*Jun 1 07:02:23.495: %CAPWAP-5-SENDJOIN: sending Join Request to 172.17.10.10
*Jun 1 07:02:24.395: %CAPWAP-5-JOINEDCONTROLLER: AP has joined controller WLC5508
*Jun 1 07:02:24.519: %LINK-6-UPDOWN: Interface Dot11Radio0, changed state to up
*Jun 1 07:02:24.863: %WIDS-6-ENABLED: IDS Signature is loaded and enabled
*Jun 1 07:02:25.239: %DOT11-4-NO_HT: Interface Dot11Radio0, Mcs rates disabled on vlan 2 due to not using AES encryption or encryption is not disabled
*Jun 1 07:02:25.239: %DOT11-4-NO_HT: Interface Dot11Radio0, Mcs rates disabled on vlan 3 due to not using AES encryption or encryption is not disabled
*Jun 1 07:02:25.275: %LINK-6-UPDOWN: Interface Dot11Radio1, changed state to down
*Jun 1 07:02:25.283: %LINK-5-CHANGED: Interface Dot11Radio1, changed state to reset
*Jun 1 07:02:26.263: %LINEPROTO-5-UPDOWN: Line protocol on Interface Dot11Radio0, changed state to up
*Jun 1 07:02:26.275: %LINEPROTO-5-UPDOWN: Line protocol on Interface Dot11Radio1, changed state to down
*Jun 1 07:02:26.303: %LINK-6-UPDOWN: Interface Dot11Radio1, changed state to up
*Jun 1 07:02:26.311: %LINK-6-UPDOWN: Interface Dot11Radio0, changed state to down
*Jun 1 07:02:26.319: %LINK-5-CHANGED: Interface Dot11Radio0, changed state to reset
*Jun 1 07:02:27.303: %LINEPROTO-5-UPDOWN: Line protocol on Interface Dot11Radio1, changed state to up
*Jun 1 07:02:27.311: %LINEPROTO-5-UPDOWN: Line protocol on Interface Dot11Radio0, changed state to down
*Jun 1 07:02:27.343: %LINK-6-UPDOWN: Interface Dot11Radio0, changed state to up
*Jun 1 07:02:28.343: %LINEPROTO-5-UPDOWN: Line protocol on Interface Dot11Radio0, changed state to up
*Jun 1 07:02:50.971: %CLEANAIR-6-STATE: Slot 0 enabled
*Jun 1 07:02:52.763: %CLEANAIR-6-STATE: Slot 1 enabled

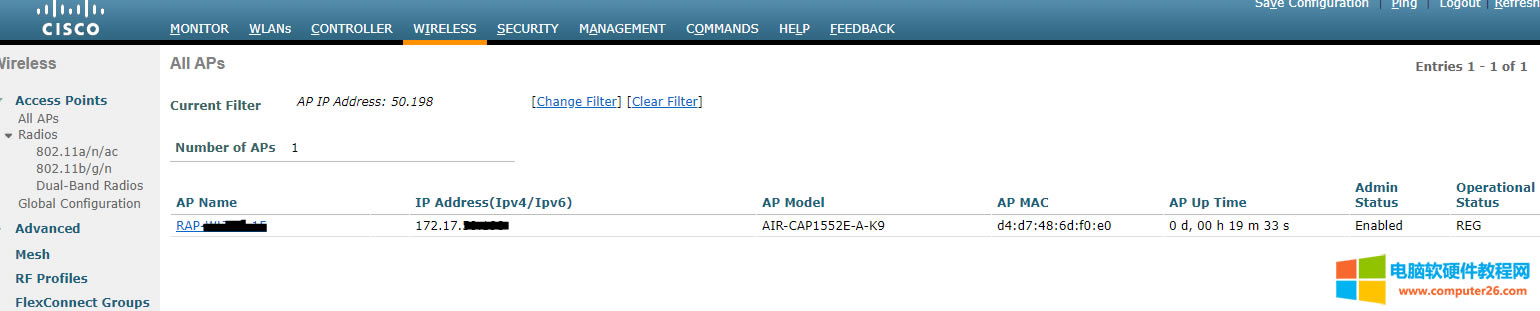

控制器上再次檢查，可以看到，已經注冊成功了。
